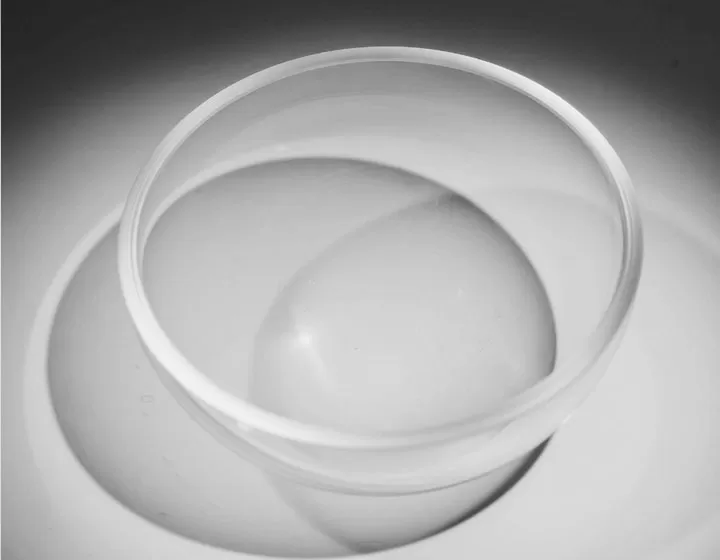

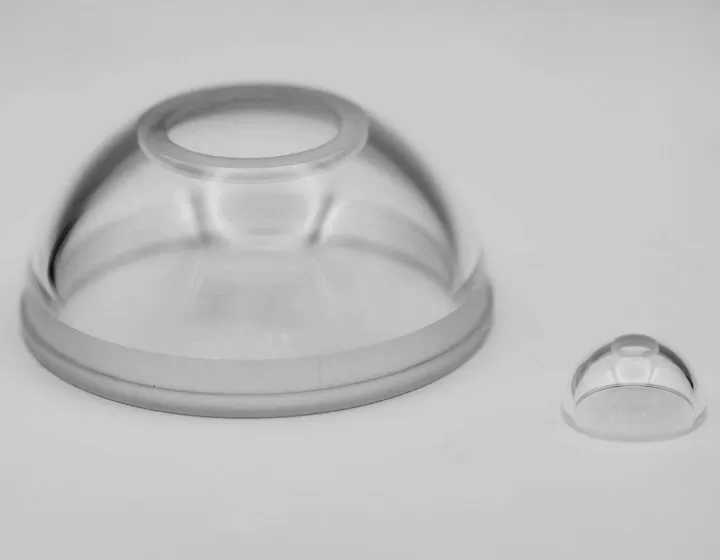

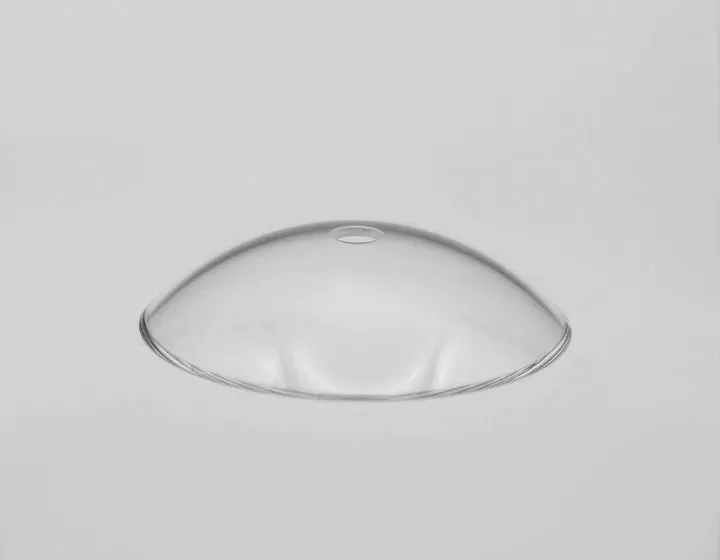

Visible Optical Glass Dome

Name: Visible Optical Glass Dome
Brand: ECOPTIK INDUSTRIAL PTE.LTD.

Visible Optical Glass Dome needs to maintain high transmittance, low distortion, and excellent mechanical and environmental stability in the visible light band (400-700nm). ECOPTIK visible optical glass dome utilizes optical grinding and polishing techniques to endow its products with unique optical properties. We can control the parallel tolerance to<± 2 μm, creating a perfect parallel surface that will not distort the image in imaging and the light in measurement. Visible Optical Glass Domes are widely used in fields such as photoconductive heads, drone cameras, underwater detection, and security monitoring.

Contact

Specification of Visible Optical Glass Dome

Substrate	Visible material-Optical glass (Schott N-BK7, N-BK10, WG295, N-K5, etc.)
Dimension	10mm-350mm
Thickness	1mm-10mm
Surface Quality	60/40, 40/20, 20/10
Surface fringe	10(5)-3(0.5)
Coating	Antireflection (AR) Coating
Strenthened via heat treatment (tempering)
