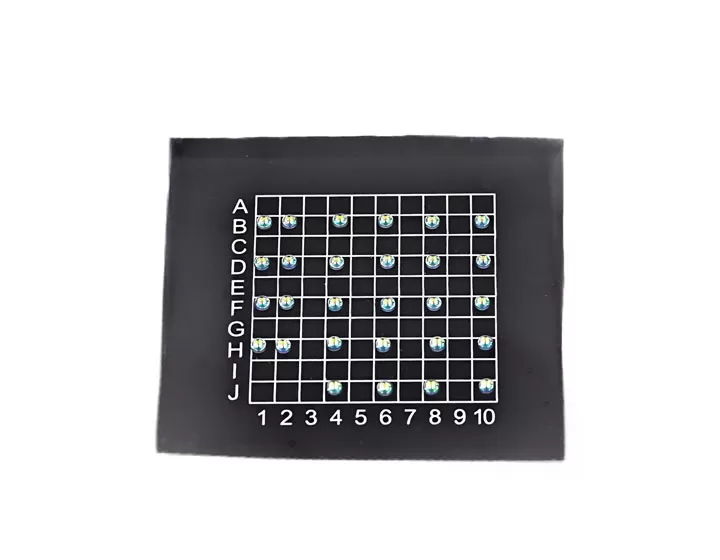

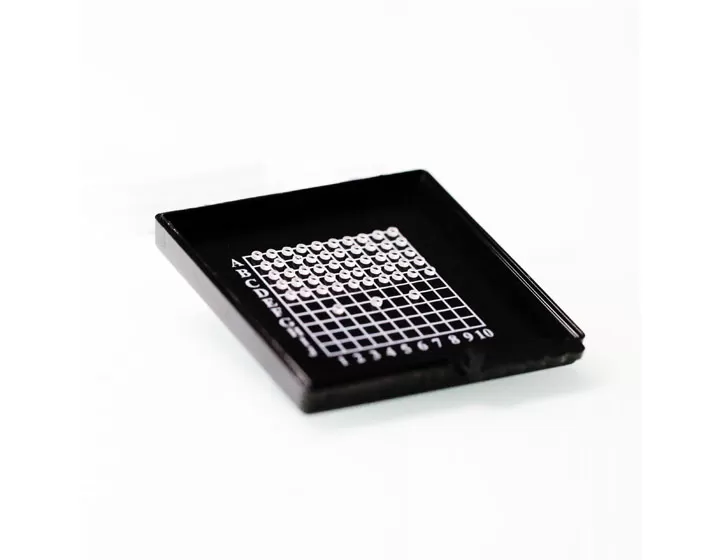

Micro Lens

Name: Micro Lens
Brand: ECOPTIK INDUSTRIAL PTE.LTD.

ECOPTIK can customize high-precision micro lenses with diameters ranging from 0.3mm to 5mm, using materials in the ultraviolet, visible, and infrared bands. Micro lenses empower medical devices with miniaturization, reconstruct optical communication with precision optics, and revolutionize imaging systems with aberration control, continuously pushing the boundaries of high-precision optical technology in the fields of life sciences, information transmission, and visual interaction.

Contact

Specification of Micro Lens

Material	Optical glass, Fused silica, Sapphire, etc.
Diameter	1mm ~ 10mm
Diameter tolerance	±0.001mm
Focal length	-50mm ~ 200mm
Focal length tolerance	±1%
Centration	< 3 arc min
Clear aperture	>85% of dia
Surface quality	60/40, 20/10
Surface accuracy	<λ/10@633nm
Chamfer	0.05mm x 45°
Coating	According to customer requirements
