Penta Prism

Name: Penta Prism
Brand: ECOPTIK INDUSTRIAL PTE.LTD.

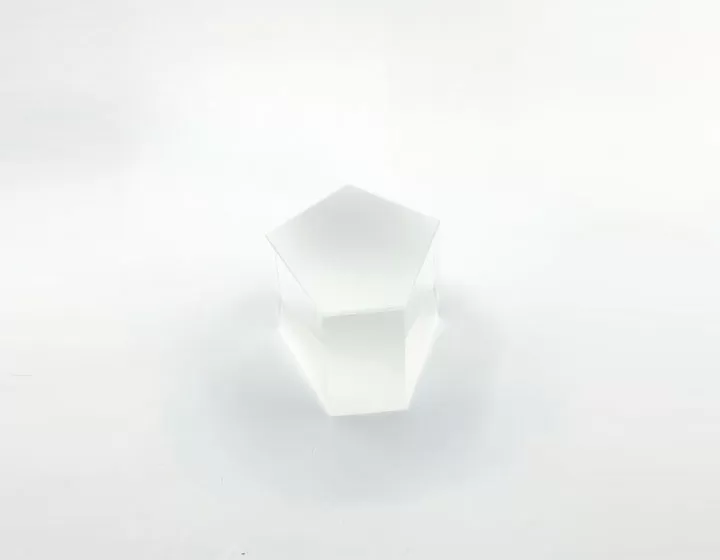

Pentaprism is a polyhedral prism with a special optical structure, consisting of two refractive surfaces at a 90° angle and two reflective surfaces at a 45° angle. Light is incident vertically from any 90° plane, undergoes two reflections (non total reflection), and exits from another 90° plane to achieve precise 90° deflection. This optical component is used in specific applications such as DSLR camera viewfinders, laser levels, rangefinders, high-voltage tower vertical detection, cable conduit calibration, laser cutting and welding equipment optical path adjustment, semiconductor wafer positioning, and conveyor belt object detection.

Contact

Specification of Penta Prism

Material	N-BK7
Diameter Tolerance	±0.1mm
Angular Tolerance	≤2''
Flatness	λ/4 @ 632.8nm
Surface Quality	40/20
Clear Aperture	>85%
Bevel	<0.25mm X 45°
Coating	S1&S2-Single layer MgF2 coating
S3&S4	Aluminized and painted black
Dimension(mm)	7x5, 7x6, 10x10, 15x15, 20x20, 30x30
