Cube Beamsplitter

Name: Cube Beamsplitter
Brand: ECOPTIK INDUSTRIAL PTE.LTD.

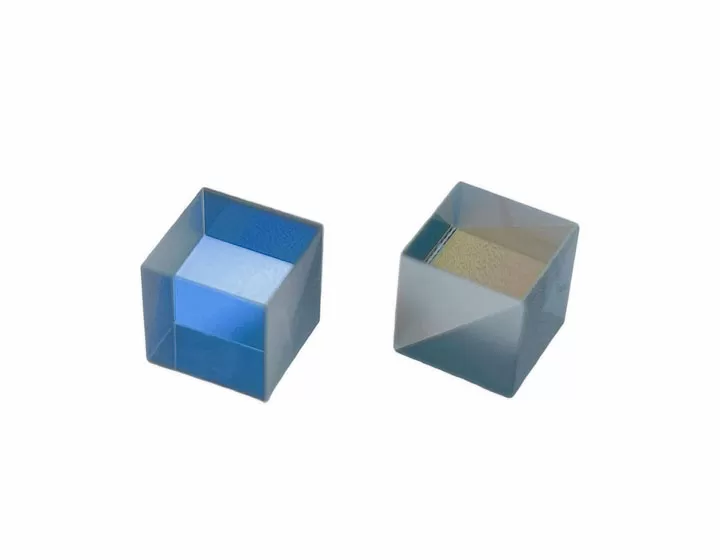

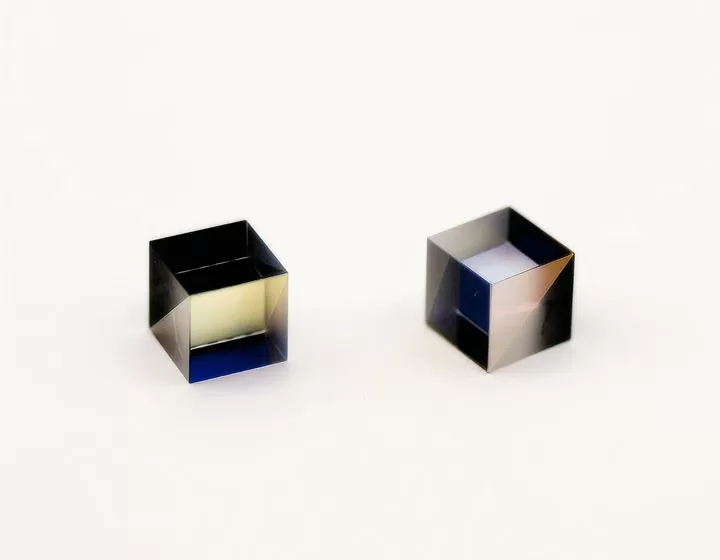

Dielectric film type polarizing cube beam splitter is the most common and high-performance PBS type, suitable for high demand laser and precision optical applications. The structure consists of two right angled prisms, and the inclined surface of the coated film is bonded to the inclined surface of another prism through optical adhesive to form a cube. The core principle is to use the interference effect of multi-layer dielectric optical films deposited on the prism slope to separate light. Dielectric film type PBS is used in fields with strict requirements for polarization control due to its high performance, such as high-power laser systems, precision interferometry, quantum information science, scientific research and experimental optics, high-end displays and imaging.

Contact

Specification of Beamsplitter

Material	Optical glass BK7 / ZF glass
Dimension tolerance	±0.1mm
Flatness	λ/4 @ 632.8nm
Surface quality	60/40, 40/20
Angle tolerance	<3arc min~ 30 arc sec.
Principal transmittance	Tpave > 96%, Ts,1% (Narrowband); Tpave > 95%, Ts,1% (Broadband)
Principal reflectance	Rs>99%, Rp<5%
Coating
Hypotenuse face	Polarization beamsplitter coating;
All input and output face	AR Coating
Type No. Size(mm)	CBP-5 5×5×5 CBP-10 10×10×10 CBP-12.7 12.7×12.7×12.7 CBP-15 15×15×15 CBP-20 20×20×20 CBP-25.4 25.4×25.4×25.4
