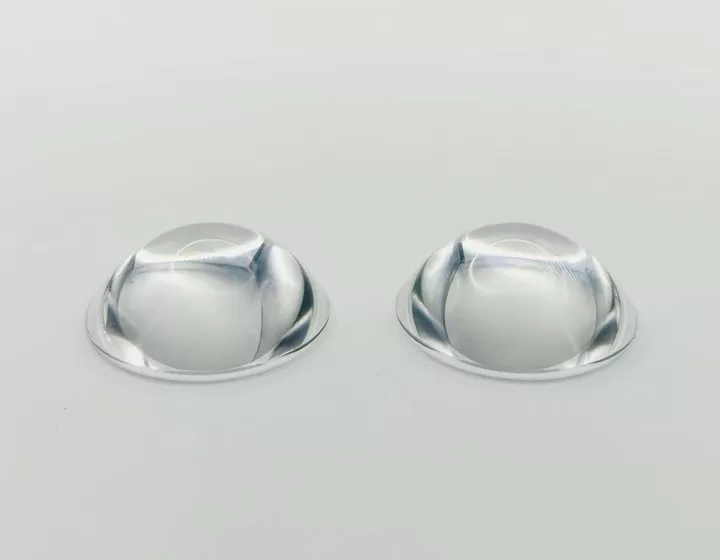

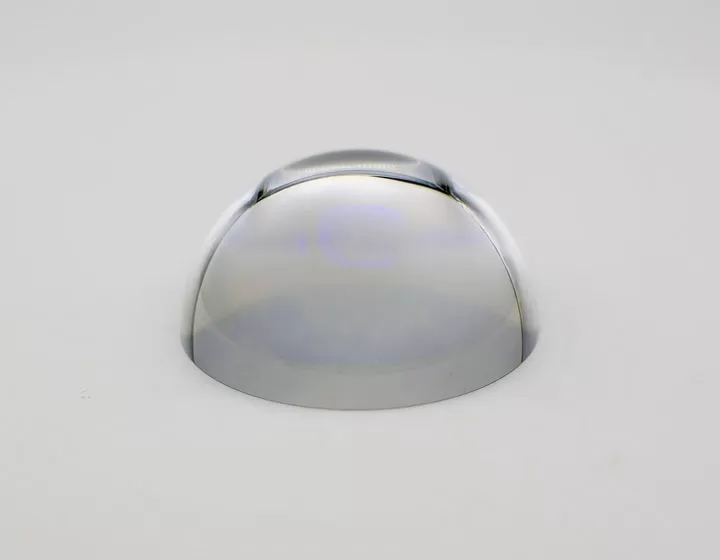

Half Ball Lens

Name: Half Ball Lens
Brand: ECOPTIK INDUSTRIAL PTE.LTD.

Half Ball Lens is a special optical element obtained by cutting a spherical lens into a hemisphere. ECOPTIK supplies bespoke ball and half-ball lenses to our customer’s specifications. Ball lenses can be manufactured in quartz to have excellent UV and IR transmission between 185nm to 2000+nm, while sapphire lenses have a higher refractive index allowing a very short fall back length to better facilitate fiber coupling. Our hemispherical lenses provide uniform light scattering and are widely used in fiber coupling, LED collimation, and near-field detection.

Contact

Specification of Half Ball Lens

Material	optical glass (VIS glass, UV fused silica, Silicon, sapphire etc.)
Diameter	0.2mm-100mm
Diameter Tolerance	+0.0-0.05mm
Surface Qualty	60/40, 40/20.20/10
Surface Frigure	lambda/2~lambda/8
Coating	According to customer requirements
