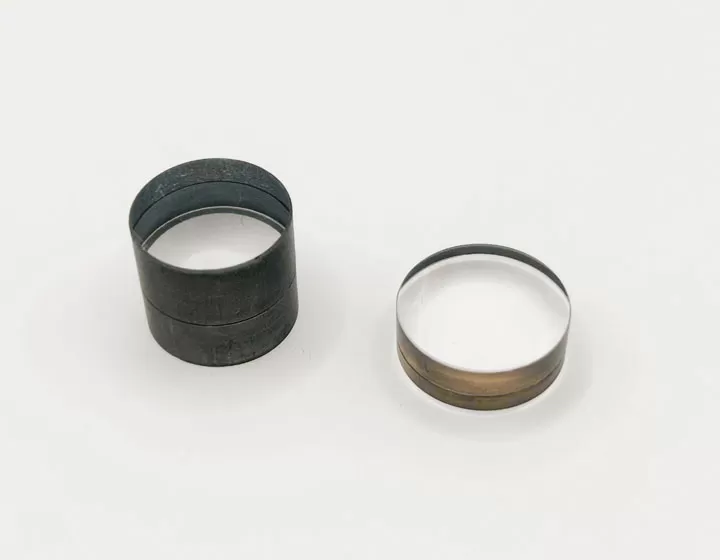

Achromatic Cemented Lens

Name: Achromatic Cemented Lens
Brand: ECOPTIK INDUSTRIAL PTE.LTD.

An achromatic doublet is an advanced lens that eliminates chromatic aberration by combining two different optical materials, making it indispensable in imaging systems and precision optics. The cementing process involves bonding two lenses with matching curvatures using optical cement (epoxy resin) to eliminate interface reflection. It is primarily used in microscope objectives, astronomical telescopes, industrial lenses, camera telephoto lenses, as well as laser focusing and collimation systems.

Contact

Specification Of Achromatic Cemented Lens

Material	Optical Flint glass & Crown glass
Diameter	6mm~200mm
Diameter Tolerance	±0.05mm(≤50mm)
Diameter Tolerance	±0.1mm(＞50mm)
Focal Length	50mm~2000mm
Focal Length Tolerance	±0.2%（＜10mm）
	±0.5%（＜10mm-1000mm）
	±1%（＜＞1000mm）
Center Thickness	2mm~50mm
Surface Quality	60/40, 40/20, 20/10
Surface Accuracy	λ/2~λ/10@632.8nm, 532nm
Clear Aperture	>85% dig diameter
Centration	<3arc min~30arc sec
Coating	As per the customer's request
