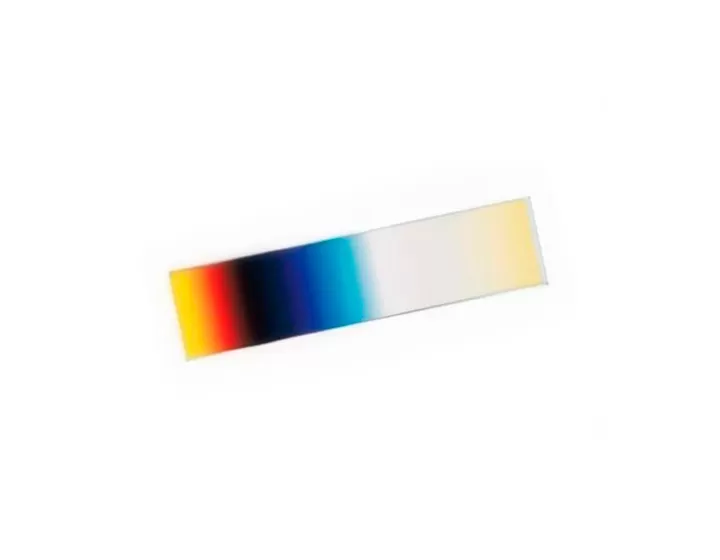

Cut-off Linear Variable Filter

Name: Cut-off Linear Variable Filter
Brand: ECOPTIK INDUSTRIAL PTE.LTD.

Cut-off linear variable filter is an interference filter whose cut-off wavelength varies linearly with physical position. Continuous gradient based on film thickness, utilizing the interference effect of light to achieve wavelength selection. Continuous and adjustable spectral filtering is achieved through a single filter, greatly simplifying system design and serving as a powerful tool for miniaturization, integration, and dynamic spectral analysis of equipment. From miniature spectrometers to multispectral imaging, from industrial sorting to scientific research equipment, its applications can be found.

Contact

Specification of Cut-off Linear Variable Filter

Wavelength (nm)	Peak transmittance (%)	Depth of cut-off	Pass band	Linear rate of variable (nm/mm)	NOTE
400-800	≥85	≥OD3	Short pass	7	Customized be met
400-800	≥85	≥OD3	Long pass	7
380-850	≥85	≥OD3	Long pass	22.3
