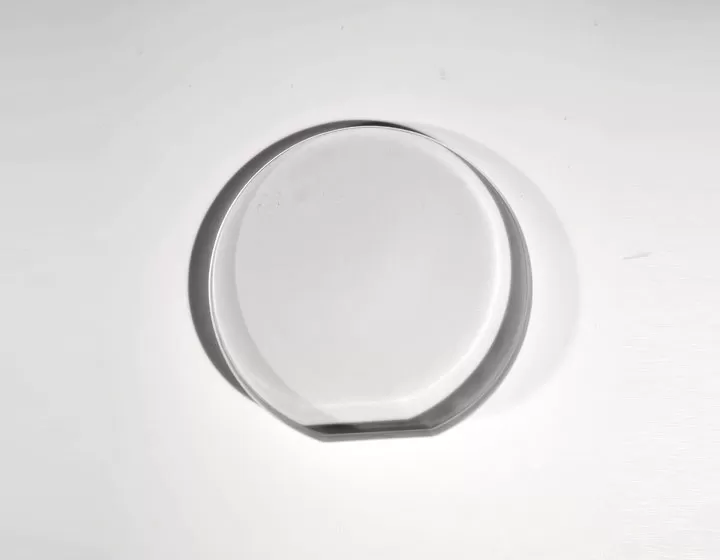

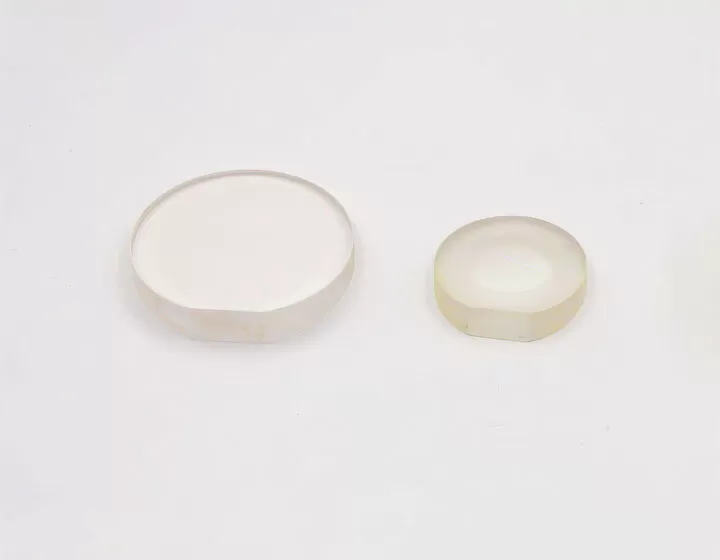

Optical Wedge Window

The optical wedge-shaped window plate with integrated lens is a composite optical element that integrates the anti reflection characteristics of the wedge-shaped window with the optical focusing/collimation function of the lens, solving the problems of volume, weight, and optical path stability caused by multiple components in traditional optical systems. Applied in high-power laser systems, large-sized ZnS window plates are used for infrared night vision devices, balancing electromagnetic shielding effectiveness and transmittance.

ECOPTIK supports customization of integrated lenses：

Single piece design: Directly processing the curvature of the lens (such as plano convex and plano concave) on the slope or plane of the wedge-shaped window, forming a "wedge-shaped lens" integrated structure.

Component based design: bonding wedge-shaped mirrors with plano convex/plano concave lenses to reduce aberrations through optical correction while reducing weight.

Functional reuse design: The combination of lens and window not only meets the requirements of infrared transmission packaging, but also provides focusing function, simplifying the process.

Contact

Specification of Optical Wedge Window

Material	Corning 7980 / Schott KG2
Dimension	Upon the customer's drawing
Centrer sphere diameter	26.1mm
Center thickness	6.8mm
Clear aperture	>90% over sides
Wedge angle	8.97Deg
Wedge angle tolerance	±0.01°
Surface accuracy	Better than λ/4 @632nn
Surface quality	60/40 Scratch /Dig
Coating	AR Coating @ 1300nm-1800nm
