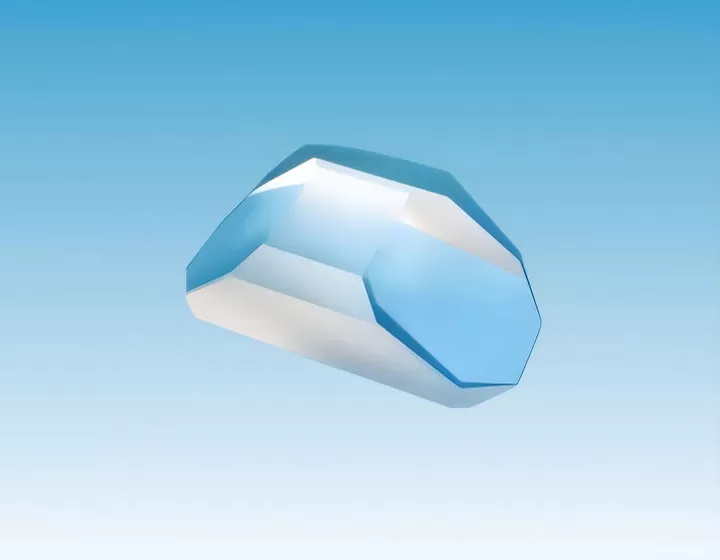

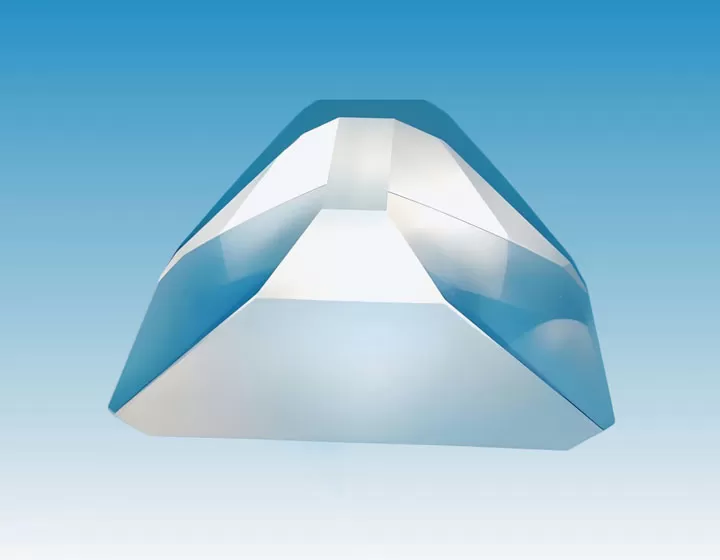

Roof Prism

Name: Roof Prism
Brand: ECOPTIK INDUSTRIAL PTE.LTD.

Roof prism is a special type of optical prism composed of two 90 ° vertical reflecting surfaces (roof surfaces), mainly used to change the direction of the optical path and maintain the image orientation unchanged. It is commonly used in optical systems such as binoculars, sights, microscopes, etc. Its core feature is the use of two mutually perpendicular reflective surfaces (ridge surfaces) to achieve upright and left-right non reversal of the image.

Contact

Specifications of Roof Prism

General spec.	High precision spec.
Material	Optical glass (H-K9L, BK7, or others), Fused silica
Dimension	2mm~80mm
Dimension tolerance	±0.1mm	±0.02mm
90°Deviation tolerance	<3 arc min	< 3arc sec.
Surface flatness @ 633nm	λ/2	λ/4
Surface quality	60-40	20-10
Coating	Upon the customer's request
