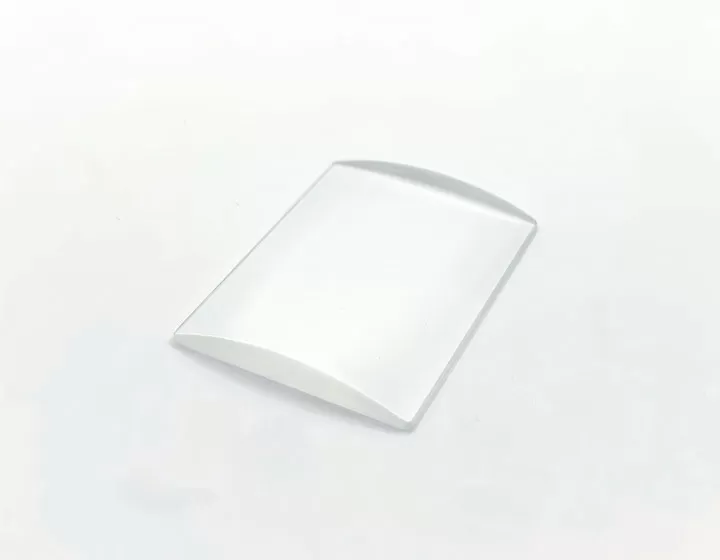

Plano Convex Cylindrical Lens

Name: Plano Convex Cylindrical Lens
Brand: ECOPTIK INDUSTRIAL PTE.LTD.

Plano convex cylindrical lens is an optical element that converges light in one direction (dimension). It consists of a plane and a convex cylindrical surface, and is a very common basic component in laser and optical systems. The convex surface of a plano convex cylindrical lens has the ability to converge light lines, but its curvature only occurs in one direction. Therefore, it can convert a point light source into a strip-shaped focal line, or compress or focus the incident beam in one dimension. Focal length is the most important parameter of a plano convex cylindrical lens, which determines the lens' convergence ability. Mainly used for laser line generation, beam compression, and spectrometer.

Contact

Features of Plano Convex Cylindrical Lens

The plano-concave cylindrical lens forms a divergent linear virtual image, which is used to control the size of the beam in one direction. The material of this lens is BK7, so it is not suitable for ultraviolet wavelengths.
The plano cylindrical lens is used in laser scanners, spectrometers, dye lasers, acousto-optics, optical processors, and other similar applications.
We use high-quality optical glass classical optics grinding, polishing processing techniques, surface accuracy of up to λ / 4, the finish may be 40/20. We can also be processed according to customer demand layers.
Cylindrical Lens Vs Spherical Lens: Spherical lenses are lenses taken out from a sphere such as a ball. Whereas cylindrical lenses are lenses taken out from a surface of a cylinder-like a tumbler. Cylindrical lenses have an axis associated with them. Both, spherical and cylindrical power can keep changing through life.

Specification of Plano Convex Cylindrical Lens

Commercial	High precision
Material	Optical glasses, fused silica, silica, etc.
Diameter	0.5mm ~ 150mm
Diameter tolerance	±0.1mm	±0.02
Focal length	-50mm ~ 2000mm
Focal length tolerance	±2% (<10mm)
	±0.5%<10mm – 1000mm)
	±1% (>1000%)
Centraticom	<3 arc min	<10 arc sec
Clear aperture	>85% ~92% of diameter
Surface quality ( Scratch / Dig)	MIL 60/40	MIL 10/5
Surface accuracy	λ/4@632.8nm	λ/10632.8nm
Bevel	0.05mm~0.2mm x 45°
Coating	Up on customer's requirement.

GET IN TOUCH WITH ECOPTIK NOW

Explore ECOPTIK's advanced optical components and lenses. Inquire now for customized solutions to enhance your optical projects.
