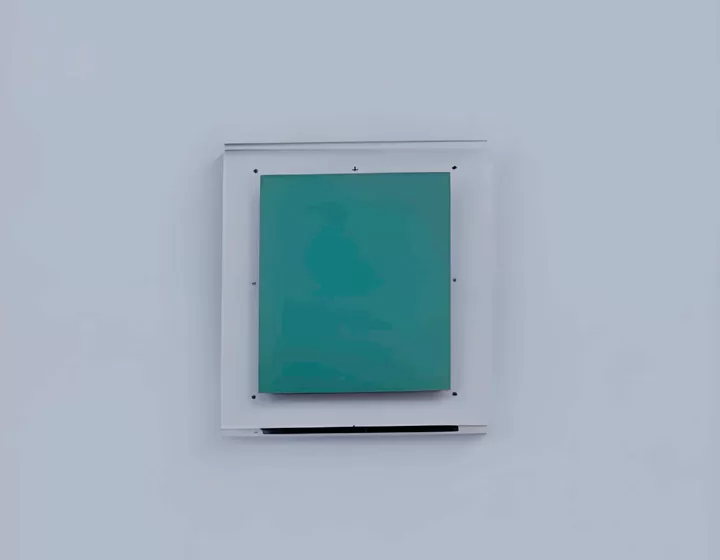

Mosaic Filter

Name: Mosaic Filter
Brand: ECOPTIK INDUSTRIAL PTE.LTD.

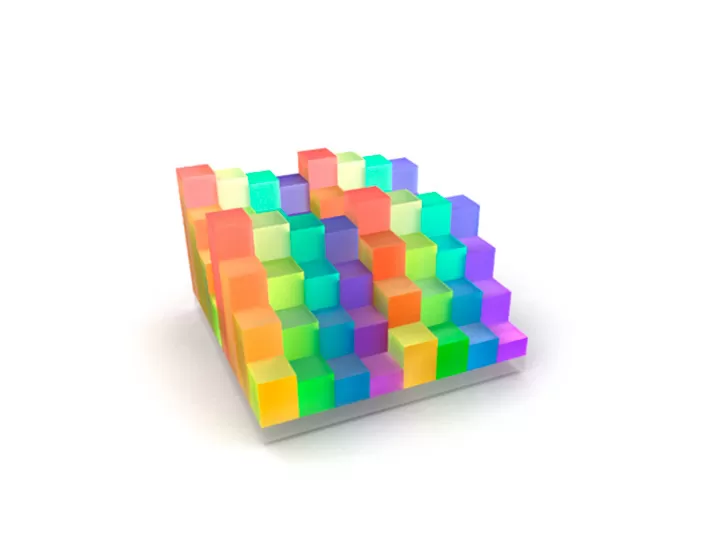

Mosaic filter is a miniature color filter array that covers an image sensor. Let each pixel sense only one color, and then calculate the full-color image through algorithm interpolation. It can achieve high-quality color digital imaging with the lowest cost and simplest structure.

Contact

Features of Mosaic Filter

Pixel level Mosaic filter, referring to the color filter RGB channel arrangement, multiple micrometer level spectral channels are arranged into a spectral period according to a certain law, and multiple spectral periods are arranged on the filter surface in a Mosaic way. The physical size of the filter can be determined according to the pixel size of the detector so that the spectral channel and detector pixel can be aligned one by one.

Specification of Mosaic Filter

Wavelength (nm)	Peak transmittance (%)	CWL	Number of spectral channels	Size of single channel (μm)	Dimension（mm）	Note
450-570	>60	＜12	9	10、11	11.264x11.264	The range of wavelength、 The numbers of channels Can be customizable
630-780	>60	＜12	9	10、11	11.264x11.264
450-570	>60	＜12	16	11	22.528x22.528
559-740	>60	＜12	16	11	22.528x22.528
700-920	>60	＜12	16	11	22.528x22.528
980-1350	>60	＜12	16	15	9.60x7.68
1350-1750	>60	＜12	16	15	9.60x7.68
1100-1700	>60	＜12	16	20	12.80x10.24

Application of Mosaic Filter

Monitoring the health status, nutrient content, and early detection of pests and diseases in crops;
Sorting fruits and vegetables, plastics, and tobacco during industrial sorting and testing, detecting drugs, counterfeit and genuine banknotes, and handwriting tampering;
Monitor river and lake water quality parameters during environmental monitoring and water quality analysis;
Mineral identification and analysis during geological exploration.

GET IN TOUCH WITH ECOPTIK NOW

Explore ECOPTIK's advanced optical components and lenses. Inquire now for customized solutions to enhance your optical projects.

More Place to Find ECOPTIK

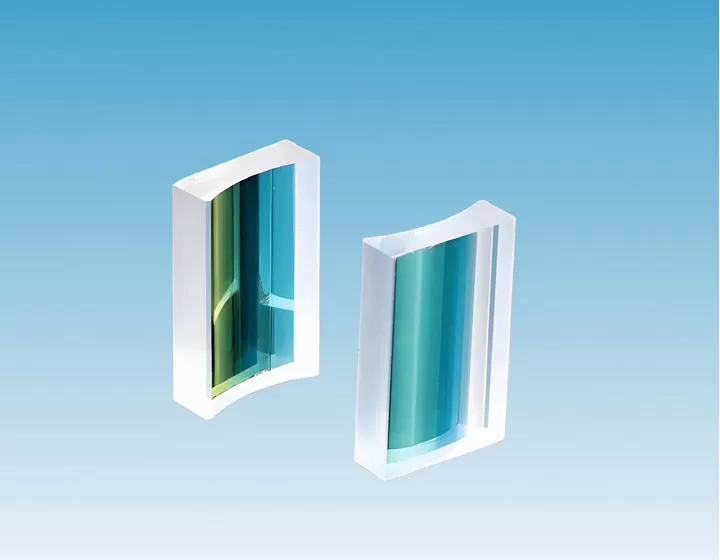

Plano Concave Cylindrical Lens

Meniscus Cylindrical Lens

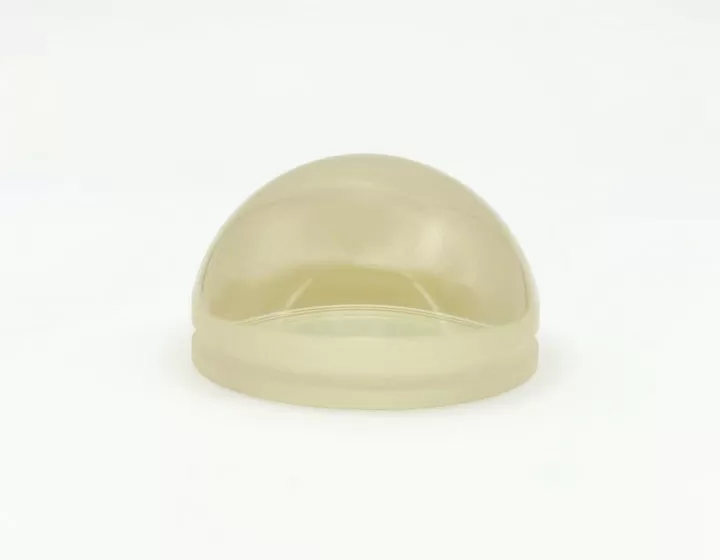

Custom Hyper Hemisphere Lens
